Overview

Pressure-Read is a module for reading pressure value from a voltage output pressure transducer (Sold separately). This module reads voltage value from a pressure transducer, converts it to pressure value, and sends the value to Netsense box through a data port.

By using this module with Netsense box, the pressure value can be monitored and stored in our server. Moreover, alert notification can be set in web based application on www.mmnetcenter.com. Using this module with Netsense box is easy. No software configuration is required. Just plug and play.

To power up the Pressure-Read module, please check out Power Injector Module.

Applications:

  • Refrigerant system
  • Gas transmission line
  • Water pipe

Features

  • Compatible with any 0.5-4.5V output pressure transducers
  • Support both 15 Bar and 30 Bar pressure transducers (Specified when order)
  • Plug and play with Netsense box
  • No software configuration
  • Utilizing web base application on www.mmnetcenter.com to monitor, log, and alert

Specifications

  • Ports: Pressure transducer input x 1, Data x 1
  • Pressure transducer type: 0.5-4.5V output, 15/30 Bar
  • Dimension: 8.5 x 6 x 2.5 cm

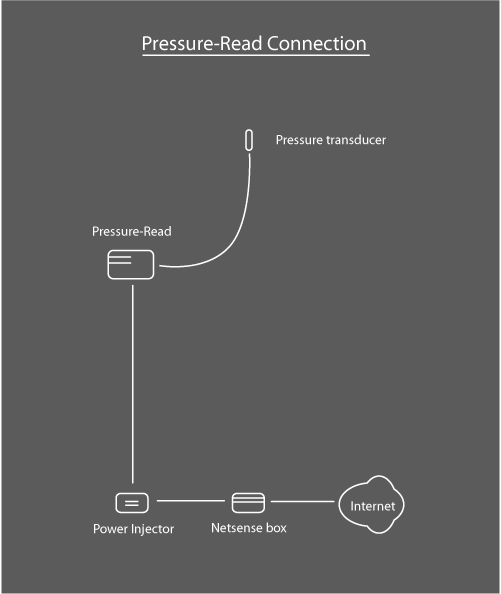

Pressure-Read connection

How to connect with Netsense box.

Pressure-Read diagram


Photo gallery

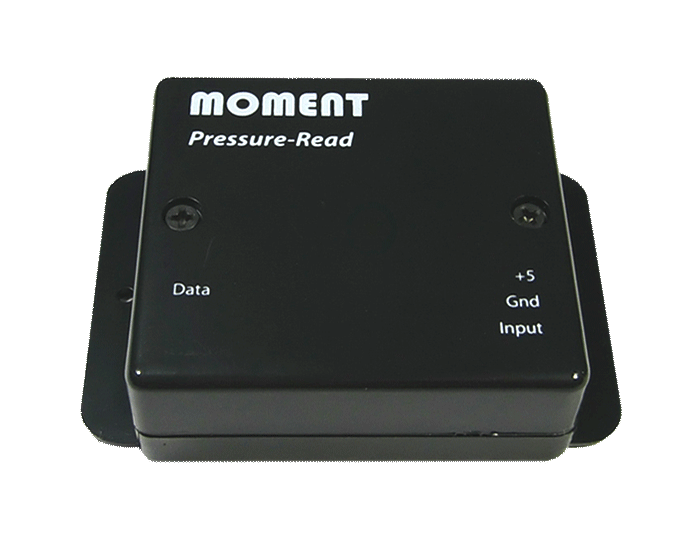

  • Front view, side view

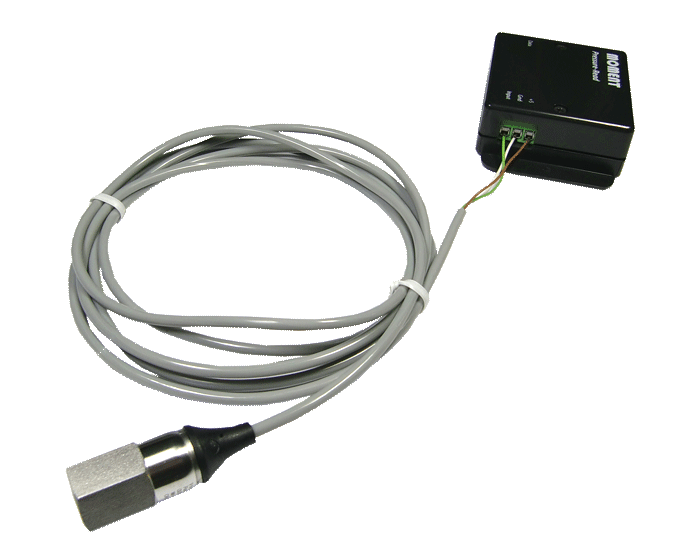

  • Pressure-Read and pressure transducer
  • Modules, Power-Injector, and Netsense box
Pressure-Read-front-view Pressure-Read-side-grenn-view Pressure-Read-side-white-view Pressure-Read-and-probe Module-Power-Netsense
